Calculator

How to choose the right gutter?

Kindly separate the roof into multiple sections for calculation wherever there is an end.

Roof
m
m
m

m³/min

m³/min

What do you need for your rain gutter system?

*** This calculation is just for reference, it may occur difference when there is different situation, you may contact our customer service for further explanation.

Recommended Specification
OutletEvery 5.8m
Bracket
Every 0.6m

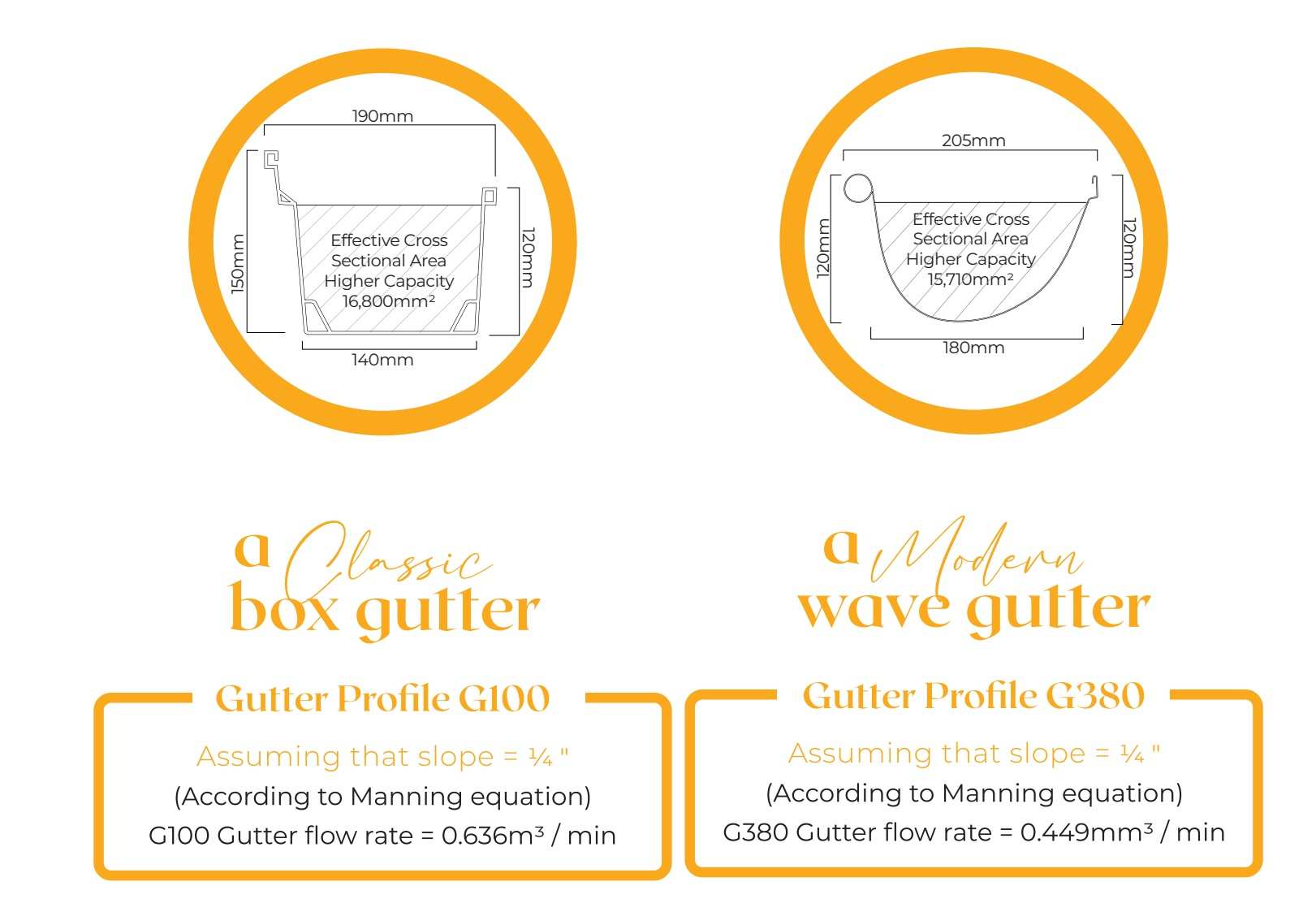

Gutter Strap (Only apply to G100)Every 0.6m
Leaf Guard (Only apply to G380)Every 0.25m
Calculation 2
m
piece

Total gutter(s) needed =

Total corner(s) needed =

Total outlet(s) needed =

Total bracket(s) needed =

Total gutter strap(s) needed =

Total end cap(s) needed =Pair

Total leaf guard(s) needed =
